Product Item:Product Categories: DC MotorBrand Name:Shengma Motor CO.,LTD. in ChinaVoltage: 1.5V~36VDC Speed: 6500~8300RPMTorque: 63~116 g.cm Electric Brush/Carbon BrushService:ODM/OEM AcceptedFeature:Factory production; High precision; CustomizableCertificate:ROHS,ISO9001,IATF,REACH Certificate of OriginCustomization:Voltage,Current,Speed,Torque,Output shaft,DC Motor,Gearbox,Ratio,Brush of DC Motor,Wire,Encoder,Gear,Noise Level,Lifetime Cycle

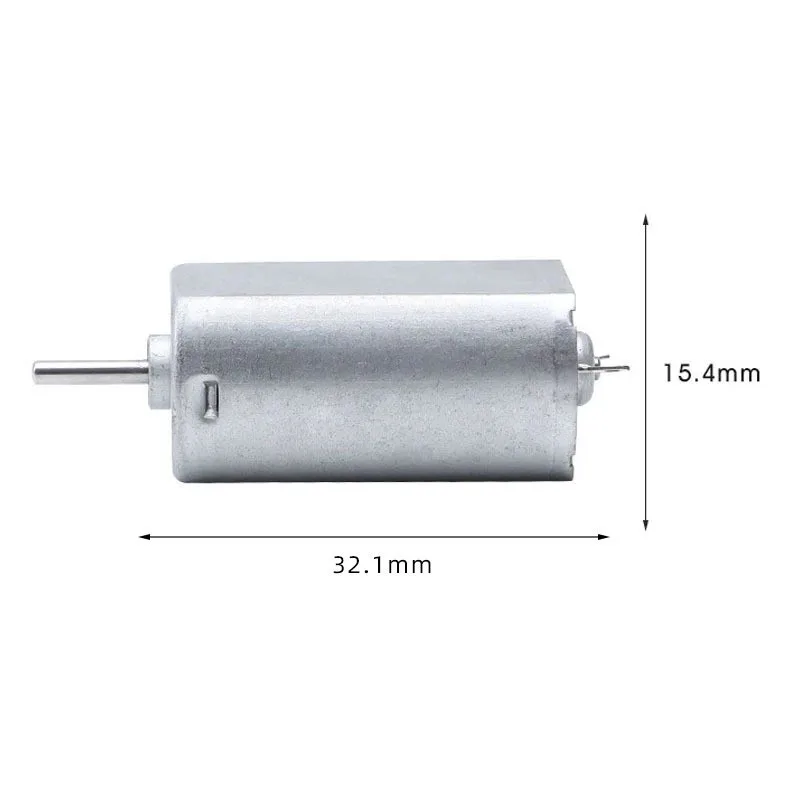

1. Product dimensions (unit:mm)
2. Motor data
| Motor Model | Voltage (V) | (No load) | (At max eff) | (Stall) | |||||
|
Speed rpm |
Current A |
Speed rpm |
CurretA |
Torque g.cm |
Output |
Torque g.cm |
Current A |
||
| FF-180 | 12 | 8300 | 0.16 | 6900 | 0.68 | 18 | 1.27 | 116 | 4.57 |
3. Regular Progress
4. Production Progress
5. Package
6. Shipping&Delivery
