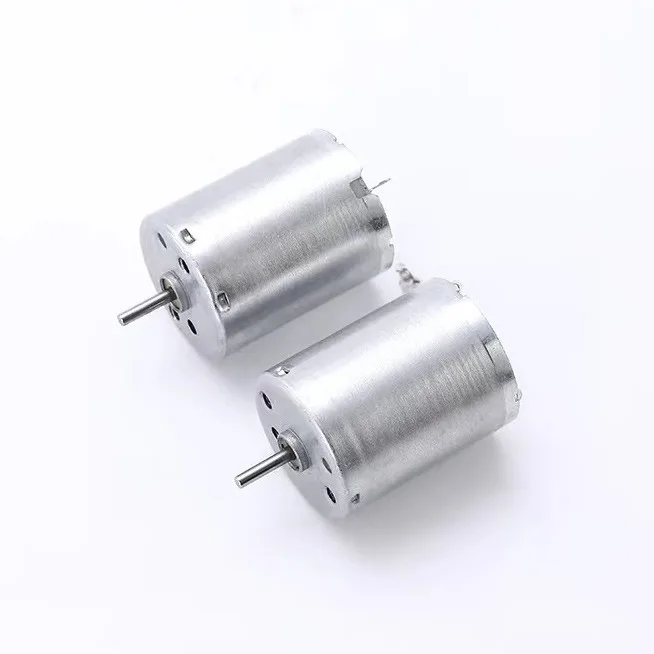

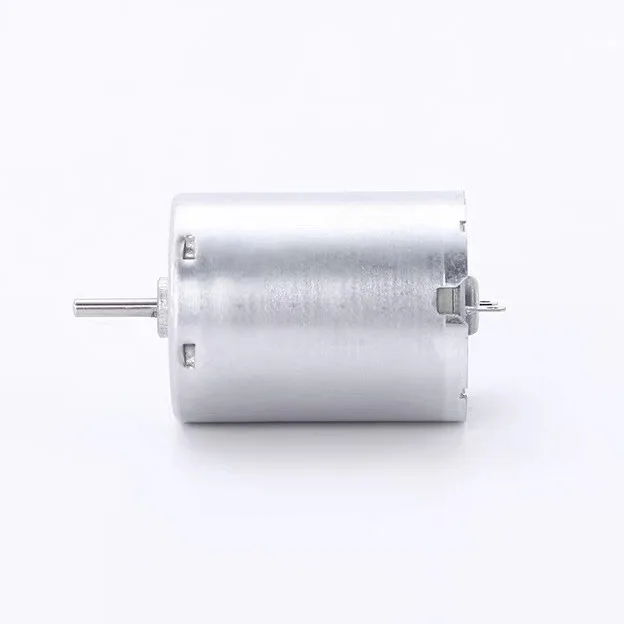

Product Item:Product Categories: DC MotorBrand Name:Shengma Motor CO.,LTD. in ChinaVoltage: 1.5V~36VDC Speed: 2600~8000RPMTorque: 83~200 g.cm Electric Brush/Carbon BrushService:ODM/OEM AcceptedFeature:Factory production; High precision; CustomizableCertificate:ROHS,ISO9001,IATF,REACH Certificate of OriginCustomization:Voltage,Current,Speed,Torque,Output shaft,DC Motor,Gearbox,Ratio,Brush of DC Motor,Wire,Encoder,Gear,Noise Level,Lifetime Cycle
1. Product dimensions (unit:mm)
2. Motor data
| Motor Model | Voltage (V) | (No load) | (At max eff) | (Stall) | |||||
|
Speed rpm |
Current A |
Speed rpm |
CurretA |
Torque g.fcm |
Output |
Torque g.cm |
Current A |
||
| SRK-370RH-09760 | 12 |
2500 |
0.11 | 1991 | 0.041 | 1.7 | 0.1 | 83.3 | 0.162 |
| SRK-370RH-15320 | 12 | 6300 | 0.036 | 5159 | 0.163 | 2.2 | 0.64 | 126 | 0.735 |
| SRK-370RH-18260 | 12 | 8000 | 0.048 | 6627 | 3.4 | 34.3 | 2.36 | 200 | 1.118 |
| SRK-370RH-081130 | 12 | 3600 | 0.009 | 2877 | 2.1 | 21.7 | 0.63 | 108 | 0.143 |
3. Regular Progress
4. Production Progress
5. Package
6. Shipping&Delivery
